HIGH-END DRUM SCANNER

ICG® 380 Drum Scanner

Our most specialised drum-scanning system for demanding film originals, selected when maximum tonal depth, shadow separation and enlargement potential are essential.
  • Used for the most demanding transparency and negative scanning projects
  • Particularly strong in tonal depth deep-shadow separation and highlight control
  • Selected when file headroom and enlargement potential matter most
  • Operates within the same calibrated workflow as the rest of the lab
description

The ICG 380 is used for film originals that justify a true drum-scanning workflow: demanding transparencies negatives and other materials where maximum extraction of detail and tonal information is important. It is especially relevant for originals intended for large reproduction fine printing publishing exhibition work or critical archive preservation.

At Scan Hub the ICG 380 is not presented as an isolated prestige machine but as one part of a calibrated multi-scanner environment. That means it is chosen when it is genuinely the right technical path for the original while still allowing direct comparison with Flextight and flatbed workflows in the same lab.

technical data
Scanner Type: Drum Scanner.
Category: Reference quality. Precision photomultiplier scanners
Media type: Transparency, colour negative, reflection copy, monochrome, linework
Media size: A3+ drum – maximum scan area 476 x 320 mm (18.7 x 12.6 inches)
Enlargement range: 20-6000% continuously variable
Optical resolution: Up to 12000ppi (472.5 p.p.mm.)
Density range: 0 to above 4D
Technology: 3 precision photomultipliers and non-fade dichroic filters
Lamp: Quartz-halogen
Platform: G3/G4 Mac only, 256Mb RAM minimum, 1Gb hard disk minimum, 24 bit display
Drum speed: 2000 rpm
Software: ScanXact® colour separation software
Image file format: TIFF
Quality: Offer the highest possible quality for the discerning colour professional
Conversion: traditional CMYK scanner and RGB input device for the ICC colour management
Dimensions: 755 x 585 x 1150 mm high (29.0 x 23.0 x 45.3 inches high)
Weight: 115 kg (252 lbs)

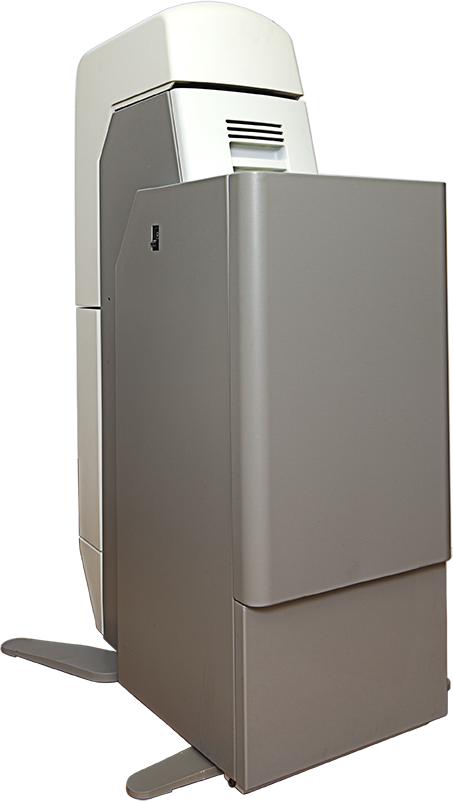

ICG-380 Drum Scanner
Order scanning with ICG® 380 Drum Scanner
